China Straddle Carrier Crane Supplier & Manufacturer

Due to the unique design and structural features, straddle carriers also called Rubber Tyred Gantry Cranes, mainly used to move and lift large equipment in narrow spaces and restricted conditions. For example, straddle cranes are widely used to lift prefabricated beams, concrete parts, prefabricated houses, tanks, tanks, wind power towers, cable barrels, containers, etc. Moreover, the straddle lift crane has three different power systems, include the diesel engine power supply, generator, and environmentally friendly full lithium battery, which can meet any special working conditions where there is a lack of power supply.

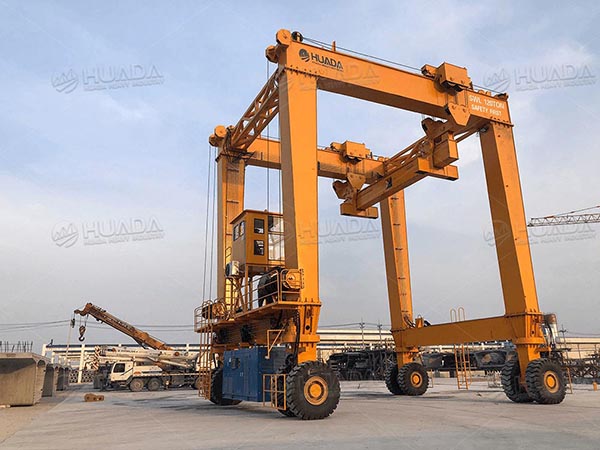

120T Double Beam Straddle Carrier

Rubber Tires Gantry Crane

35T Container Straddle Carrier

150T Double Beam Straddle Carrier

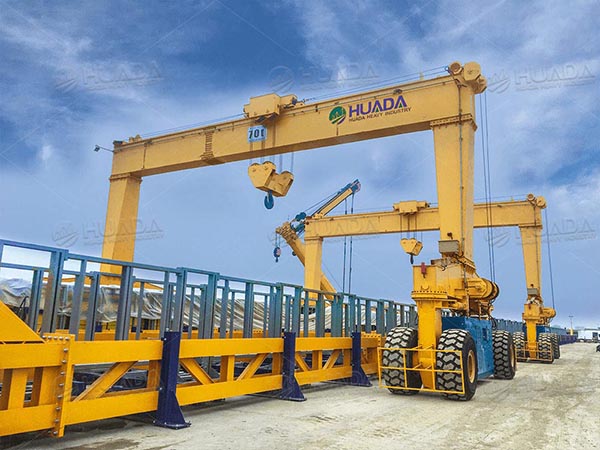

70T Single Beam Straddle Carrier

Rubber Tyred Gantry Crane

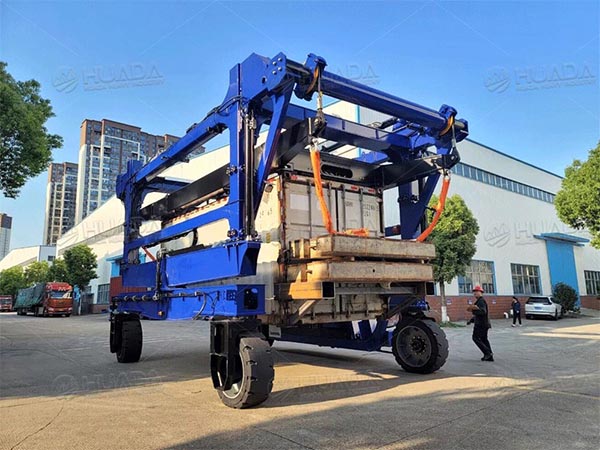

40T Container Straddle Carrier

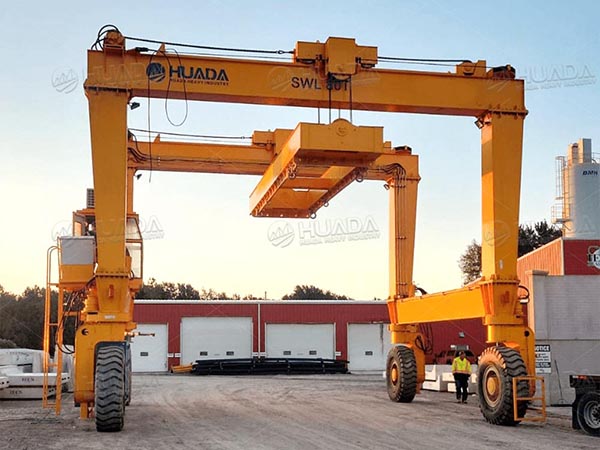

80T Double Beam Straddle Carrier

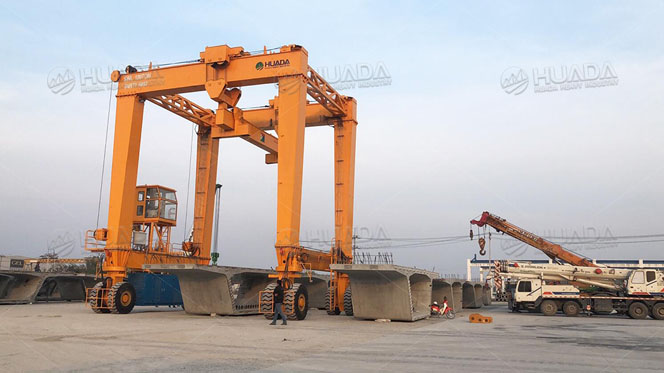

Features of Straddle Carriers

Huada focuses on the manufacture & design of straddle carriers. We are committed to creating value for our customers and provide with competitive straddle carrier price and customized straddle carrier crane solutions.

High reliability, low fuel consumption, large torque reserve coefficient engine, reasonable power matching and excellent cooling system.

The key hinge points are sealed and lubricated with dustproof, and the pin shaft and shaft sleeve have long service life.

Reasonable load distribution, four-wheel support, four-wheel balance, hydraulic brake, reliable and stable.

Straddle carrier for sale equipped with the most advanced systems and spare parts, it can effectively reduce maintenance costs and reduce customer maintenance expenses.

High-quality full hydraulic system, lifting and traveling are driven by hydraulic.

Straddle Carrier Video

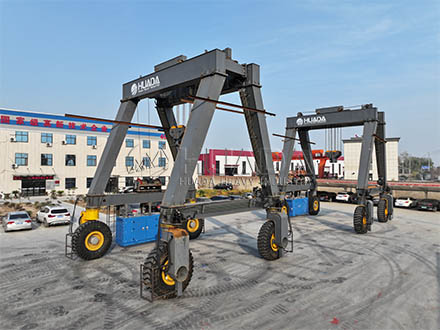

Straddle Carrier Steering Mechanism Commissioning

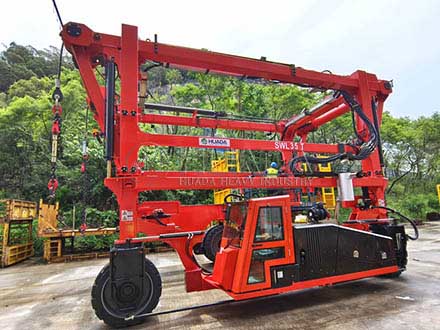

Three-Wheel Container Straddle Carrier

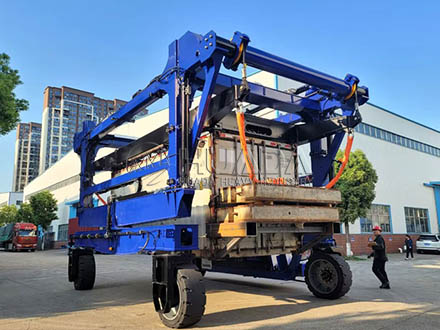

Multifunctional Container Straddle Carrier Factory Commissioning and Site Work

Application

Generally, the straddle lift crane is used for handling oversize and heavy material. The straddle carrier can be used for infrastructure, steel industry, wind tower energy, modular house building, etc.

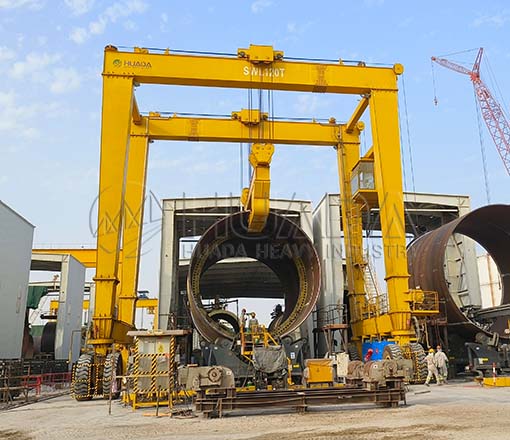

Steel Mill Applications

Handling and storing of steel coils manufacturing factory/workshop/storage yards lifting & handling of heavy parts/goods.

Container Handling

lifting and handling of containers Cargo/Goods handling to barge/ship.

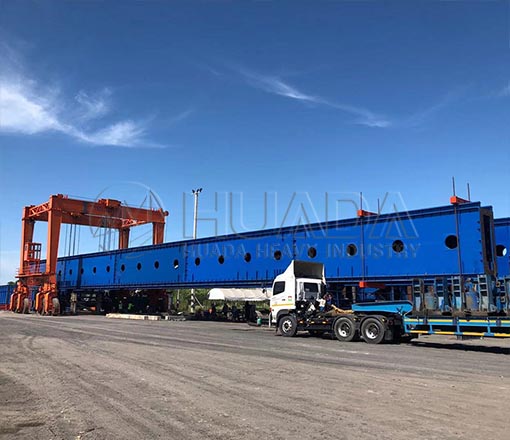

Handling and Storing of Steel Beams

Manufacturing factory/workshop/storage yards: Lifting & handling of heavy parts/goods.

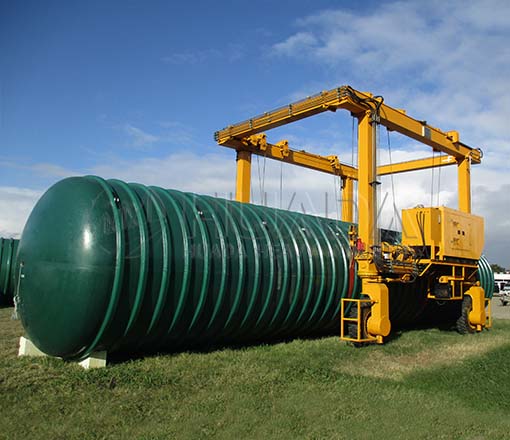

Transport and Handling of Tanks

Manufacturing factory/workshop/storage yards: Lifting & handling of heavy parts/goods.

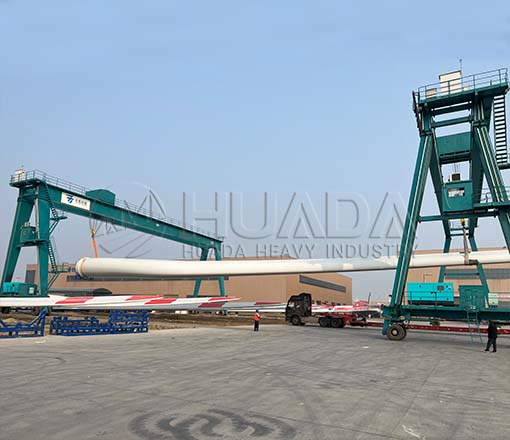

Windmill Power Handling and Storing

Manufacturing factory/workshop/storage yards: Lifting & handling of heavy parts/goods.

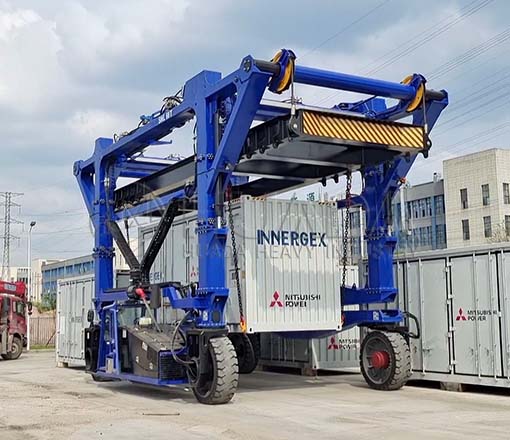

Transport Containers

Effectively Transporting and Stacking of shipping containers.

Casting Yard

Segment Handling and Storing，Handle the Rebar Cages, lift and store the Precast Girders at Casting Yard, lift the Precast Segments, etc.

Casting Yard for Lifting I Beams

Various Bridge Project (HSR, LRT, MRT, etc. Projects): Handle the Rebar Cages, lift and store the Precast Girders at Casting Yard, lift the Precast Segments, etc.

Container Handling Industry

Lifting and Handling containers in ports/container yards/other logistics hubs.

Casting Yard for Segmental Box Girders

Segment Handling and Storing

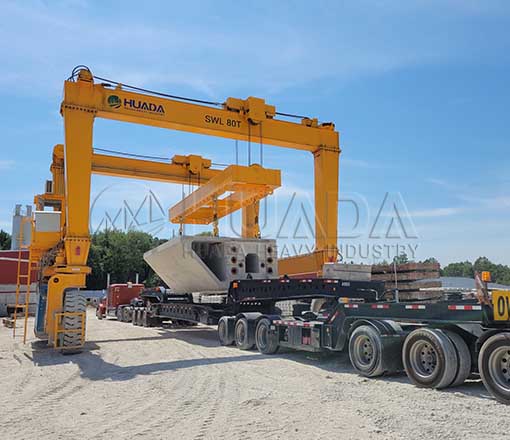

Casting Yard for Lifting Hydraulic Formwork

Segment Handling and Storing，Handle the Rebar Cages, lift and store the Precast Girders at Casting Yard, lift the Precast Segments, etc.

Professional Straddle Carrier Manufacturer

Main Parts

Safety Device

Steering Modes

Specifications

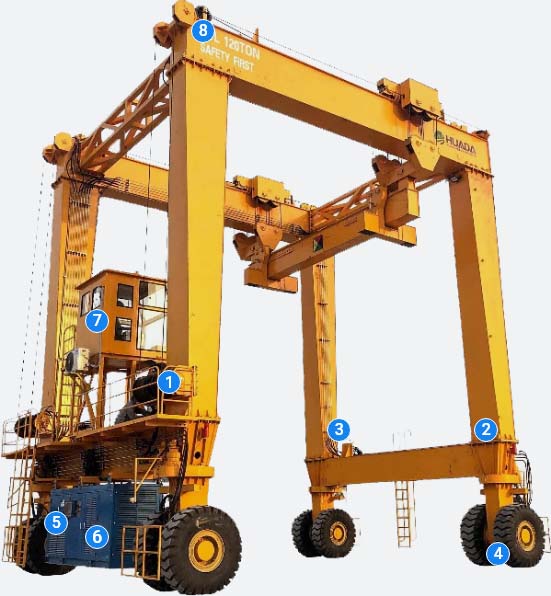

Main Parts of Straddle Carrier

The straddle carrier crane is composed of a bridge, crane traveling mechanism, trolley, and electric equipment. The frame adopts a box-type welding frame. The Crane traveling mechanism adopts rubber tire wheels. All mechanisms are operated in the driver's cabin or remote control.

Lifting Mechanism

The winch is driven by hydraulic motor, with extra brake cylinder.

Steel Structure

Welding inspection, third party inspection, safe and stable steel structure.

Hydraulic Components

Combination of hard and soft pipes,orderly and reasonable arrangementof hydraulic tubing, high qualityhydraulic cylinder, longer service life

Tire Group

High quality customized tires, better wear resistance and longer service life.

Generator Assembly

Integrated generator systemCummins engine , more reliable quality

hydraulic control system

Imported hydraulic control valuehydraulic control systemsafety , stability

Cabin and Wireless Remote Control

International brand remote control customized products , longer service life , more user-friendly operation, more convenient

Pin Shaft Weight Sensor Device

Customized pin shaft weight sensoreal-time display of lifting weight safety , durability , more accurate.

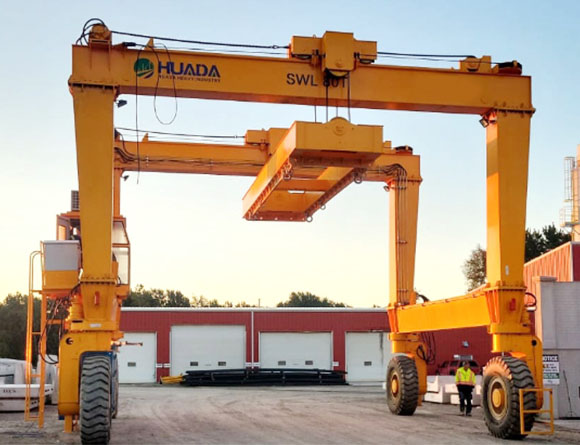

Multiple Protection Safety Devices

See how seriously we take our customers' equipment safety.

Overload protection

Hydraulic locking and unlocking

Emergency brake protection

Brake failure protection

Audible and visual alarm

High oil temperature protection

Engine abnormality alarm

Over temperature protection

Trolley travelling limit switch

Ladder

Lifting limit switch

Maintenance platform

Pressure protection system

Sound & light alarm

Stalling protection

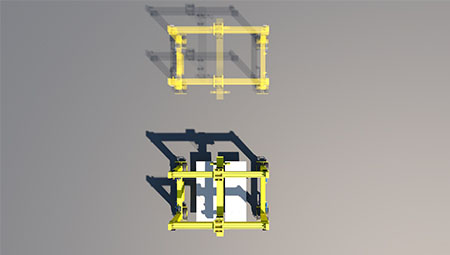

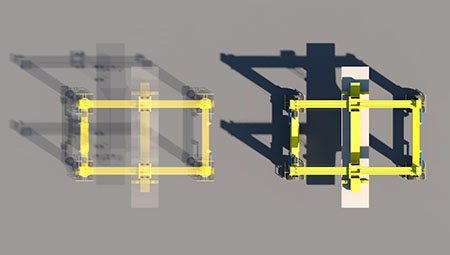

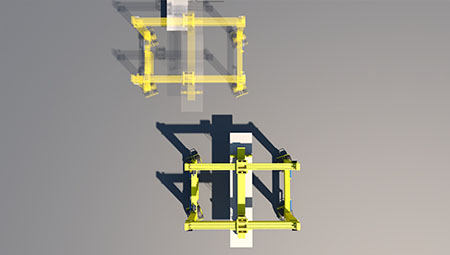

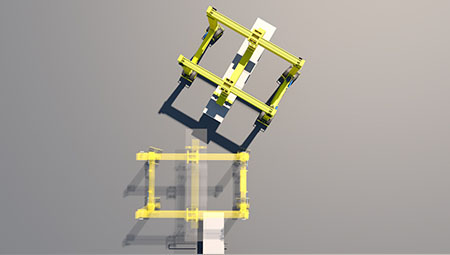

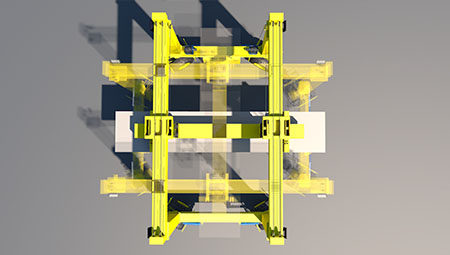

Straddle Carrier Steering Modes

The automated Straddle Carriers design can realize flexible steering in different direction, such as go straight, transverse travel, pivot steering, crab travel, front and rear steering

Straddle Carrier Specification

You can customize straddle carriers to meet your usage. Below is for your reference.

Item	Description	250Ton Straddle Carrier	900T Straddle Carrier	Item	Description	HSC35-3-1
1	Model	HSC-250	HSC-900	1	Lifting Weight	35T
2	Carrying Capacity	40t ~ 250t	900t	2	Dimension (LengthWidthHeight)	930052005300(mm)
3	Machine Working Level	A3	A3	3	Min. Ground Clearance	240mm
4	Span	36m	40.5~44.5m(Clear Span36m~40m)	4	Deadweight	16T (not including spreader)
5	Lifting Height	9m	10m-13m	5	Engine(China StageVI)	Cummins/Weichai
6	Lifting Speed	0-1m/Min	0~0.5m/min(Heavy Load) 0~1.5m/min(Without Load)	6	Travel Pump(ClosedTravel)	Hytek/Linde/Danfoss
7	Climbing Ability	±2%	±2%	7	Travel Speed(Laden)	4km/h
8	Rubber tyre type/number	14.00-25/32 pcs	26.5R25/64	8	Turning Radius	8000mm
9	Drive Shaft / Follower Shaft	8/8	8/24	9	Tires	1100(02PCs)+1300Soild Tire(02PCs)
10	Supporting Cylinder Specification	4	ø280/200t Travelling Length 400m	10	Lifting Tools
11	Axle Load Mass	300kn	48000kg	Item	Description	HSC35-4-1
12	Transverse Movement Range	± 250 Mm	± 250 mm	1	Lifting Weight	35T
13	Ground Specific Pressure	<0.9mpa	<0.7MPa	2	Dimension (LengthWidthHeight)	930052005300(mm)
14	Platform Lift Stroke	±150mm	±150mm	3	Min. Ground Clearance	240mm
15	Allowable Wind Pressure	Working Condition：250N/M²	Working Condition：250N/m²	4	Deadweight	17T
15	Allowable Wind Pressure	Off Working State：800N/M²	Off Working State：800N/m²	4	Deadweight	(not including spreader)
17	Diesel Engine - Power	250 Kw	2×273kW	5	Engine(China StageVI)	Cummins/Weichai
18	Walking Mode	Longitudinal Travelling, Transverse Travelling, Crab Travelling		6	Travel Pump(ClosedTravel)	Hytek/Linde/Danfoss
19	Wheel Group Steering Angle	90°	90°	7	Travel Speed(Laden)	7km/h
20	Inflation Pressure	10 Bars	10 bars	8	Turning Radius	7600mm
21	Adaptive Pavement	Concrete, Asphalt Pavement Or Compacted Graded Gravel Pavement.	Concrete, asphalt pavement or compacted graded gravel pavement.	9	Tires	1100(02PCs)+1300Soild Tire(02PCs)

All Core Components Are Made Of Internationally Renowned Brands

Advantages Of Straddle Carrier Crane

FEM design standard

Finite element analysis in the design stage ensures design safety and structural stress safety.

Import World Famous Core Components

Core Components are global joint guaranteed. Easy maintenance and improved service life.

World's top control system

advanced programming technology, improve the crane traveling and operation reliability.

Multiple steering modes

Flexible traveling, simple operation through remote control or cabin.

Space Saving

Customized rotary reducer to reduce steering radius, thereby saving the required workspace of equipment.

Cost savings

No need to build tracks and paved concrete, and can run smoothly on a compacted and level surface.

Automated Operation

To be operated automatically by remote control, further improve safety and work efficiency.

Modular Design

Help users reduce maintenance costs and improve working efficiency.

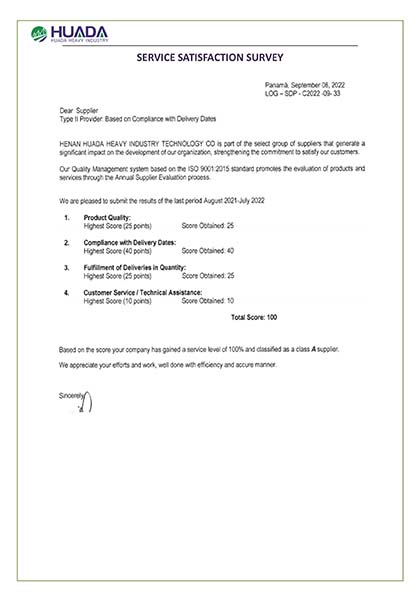

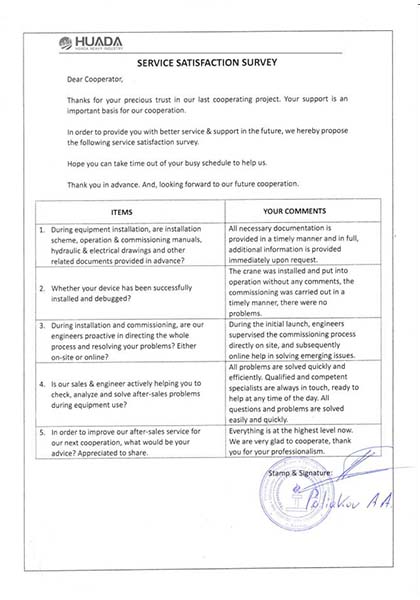

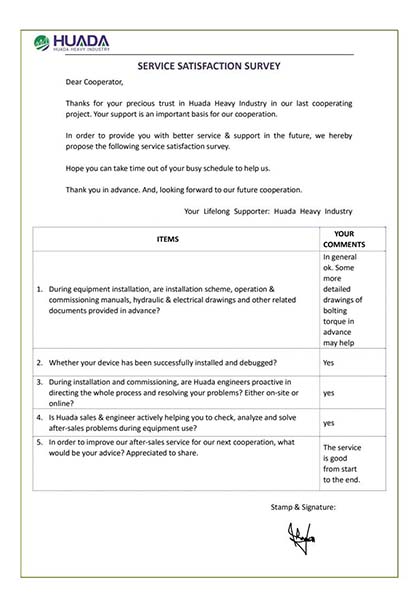

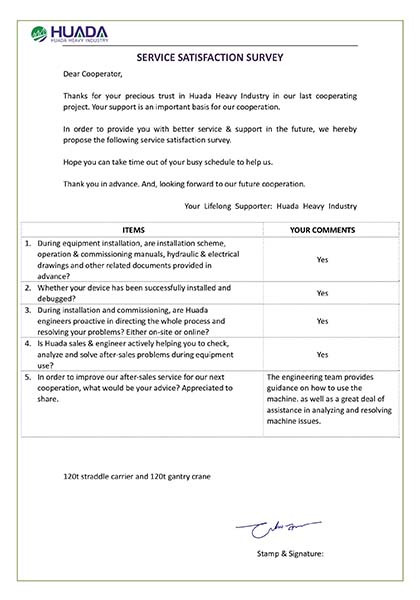

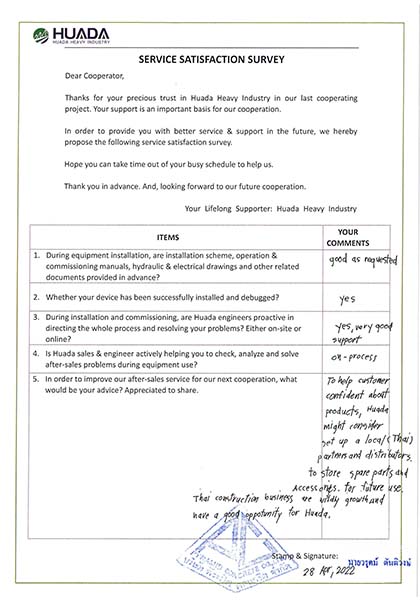

Highly Recognized By Our Customers

Trust by manufacturers and construction contractors for the ability to achieve simple, efficient, and more accurate operations.

Configuration Options

Options that improve your Straddle Carrier Crane's performance. You can always make an option for your device.

Customize Your Needed Handling Equipment

All-Wheel Hydraulic Steering

Increased Gradeability

Dual Traversing Trolleys

Linkageless Steer

Raised Cab

24-Volt Work and Drive Lights

Electronic Load Readout

Cab Air Conditioning and Heat

Automatic Variable Throttle

Sound Suppression Kit

Crane Bumper

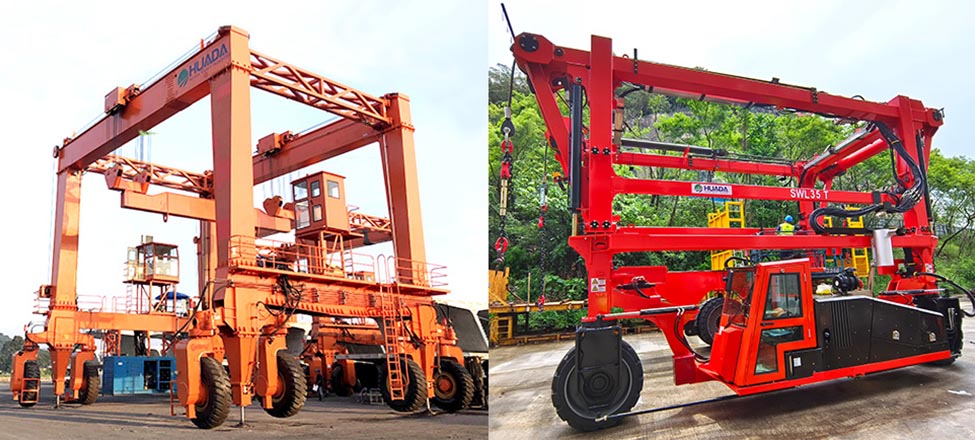

Customize Your Needed Handling Equipment

Customize the height and width of the crane according to the object to be lifted and the requirements of the working conditions.

I want to customize

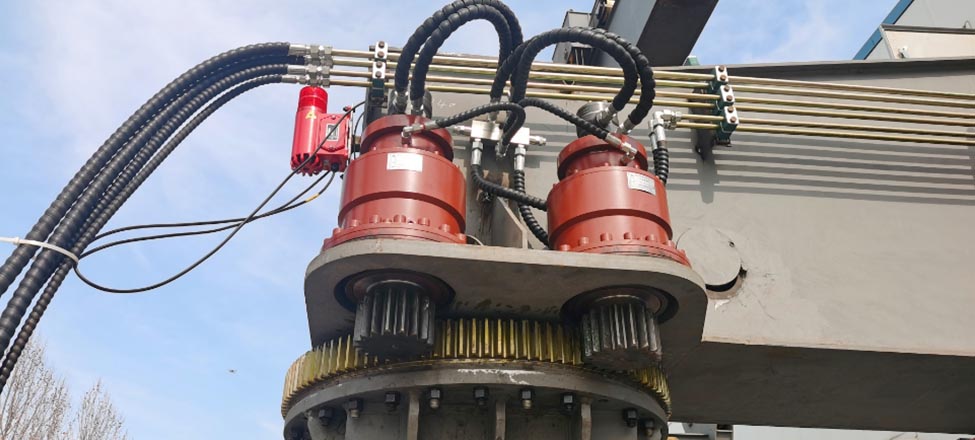

All-Wheel Hydraulic Steering

Makes operation more flexible and precise, suitable for different working conditions. Such as going straight, 90-degree steering, and crab traveling, Carousel, and Coordinate.

I want to customize

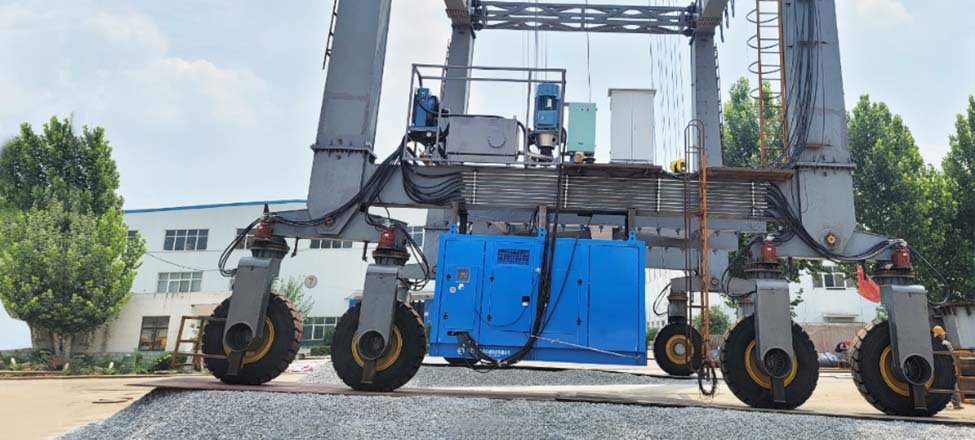

Increased Gradeability

The straddle carrier is equipped with additional wheel motors and has some climbing ability, enabling its crane to travel on sloping or uneven ground.

I want to customize

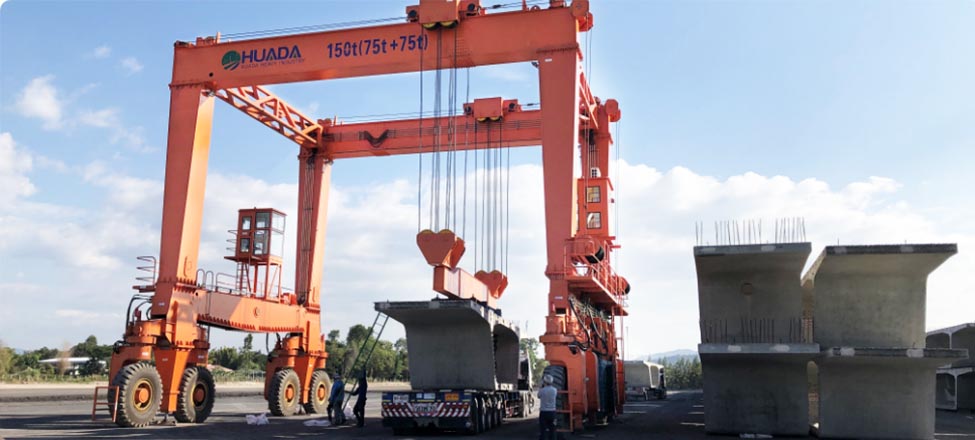

Dual Traversing Trolleys

Provide two optional lifting points for each trolley. The spacing is demand-dependent to accommodate specific lifting needs.

I want to customize

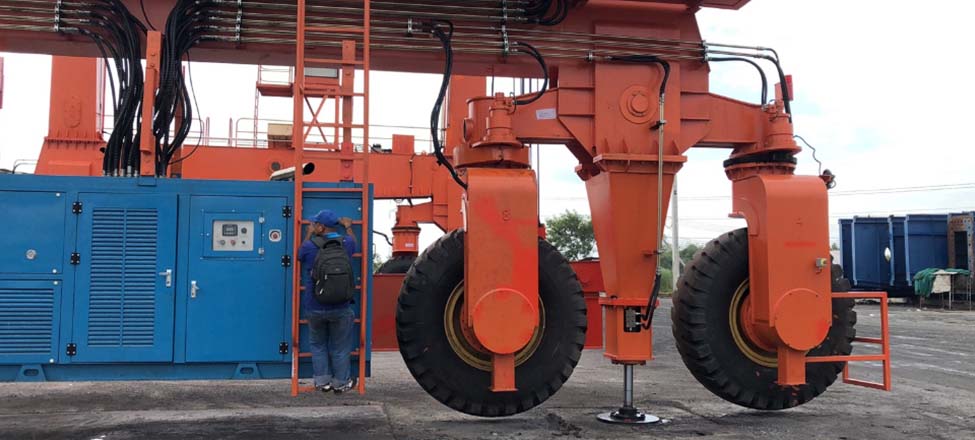

Linkageless Steer

The two-wheel linkage-less steering eliminates the steering linkage, making it easy to operate and maintain wheel alignment, and reducing maintenance, wear parts, and lubrication points.

I want to customize

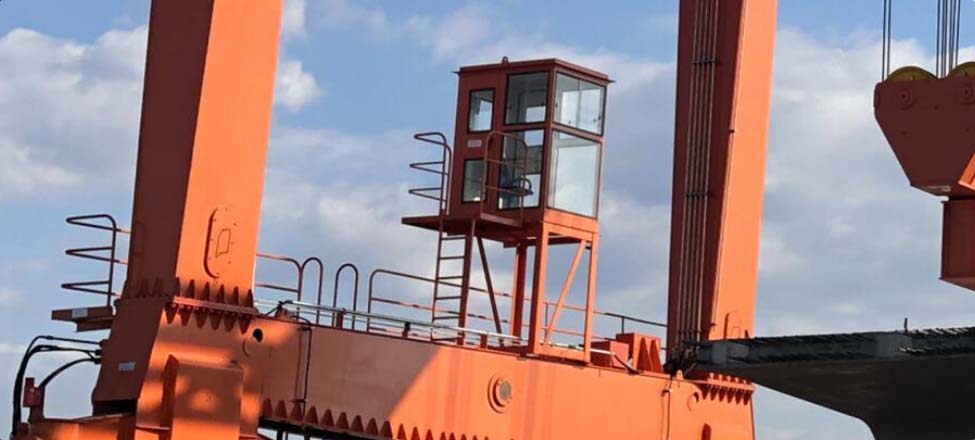

Raised Cab

The customizable raised cab options, makes operators a wider field of view for improved safety and precision operation.

I want to customize

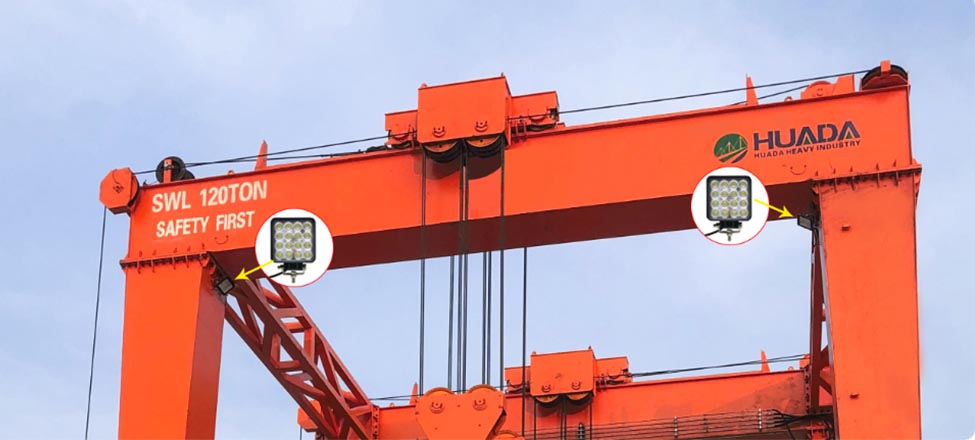

24-Volt Work and Drive Lights

Provides 24-volt work and driving lights for night work, and increased work safety.

I want to customize

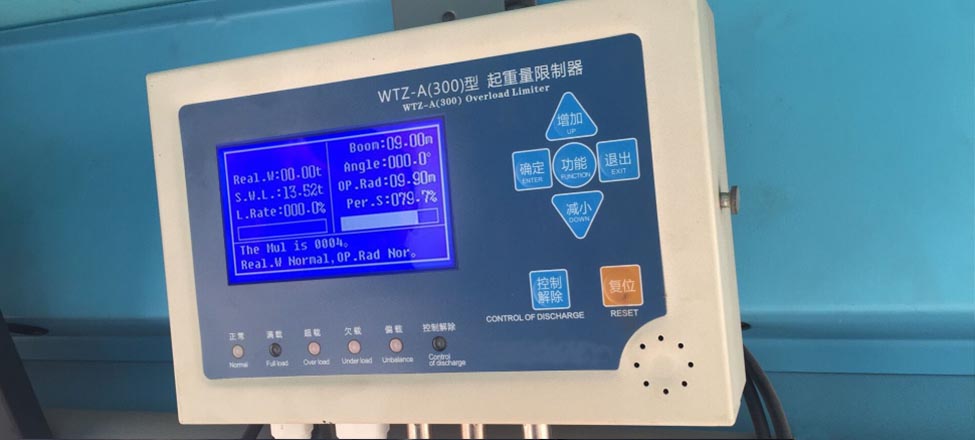

Electronic Load Readout

In the cab and on the remote control, provides an indication of the weight of the load being lifted.

I want to customize

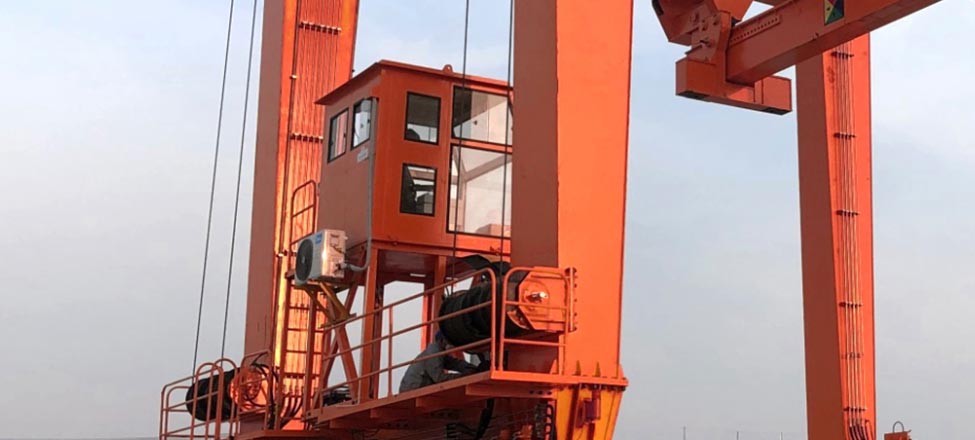

Cab Air Conditioning and Heat

Offers climate control for your enclosed cab, no more worrying about climate issues affecting work efficiency.

I want to customize

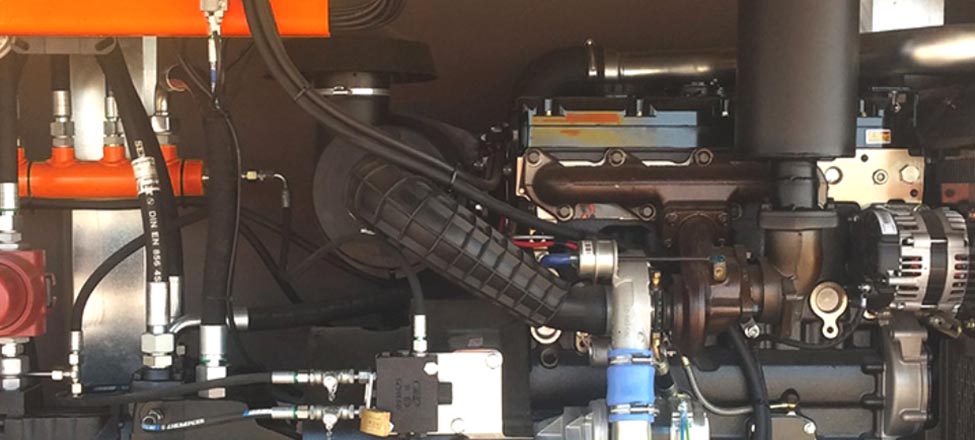

Automatic Variable Throttle

Automatic Variable Throttle (AVT), a built-in engine program that automatically adjusts engine speed, greatly reducing fuel consumption and increasing the life of components and the entire engine.

I want to customize

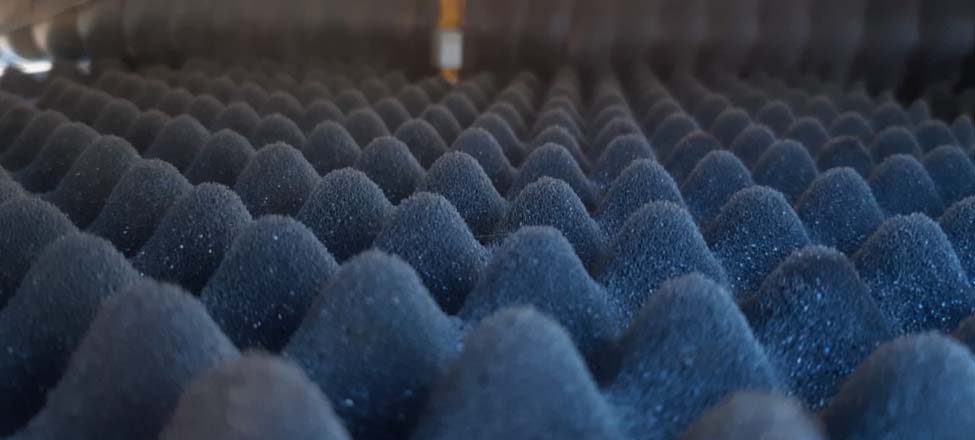

Sound Suppression Kit

Class 1 acoustic panels were installed in the engine compartment to reduce ambient noise around the crane.

I want to customize

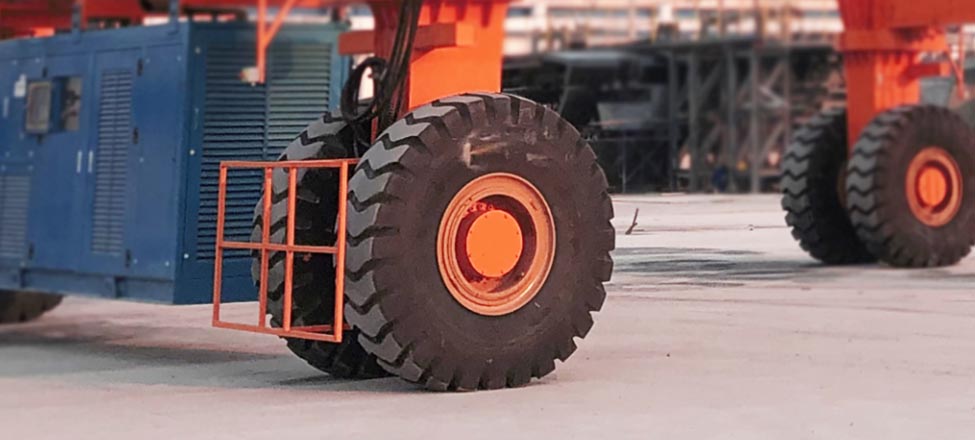

Crane Bumper

Installed on the tire set to prevent collision obstacles, protect the tires and improve the safety of work driving.

I want to customize

Rich Experience in Overseas Project Cases

Huada Heavy Industry has Lots of completed overseas project cases with rich experience.

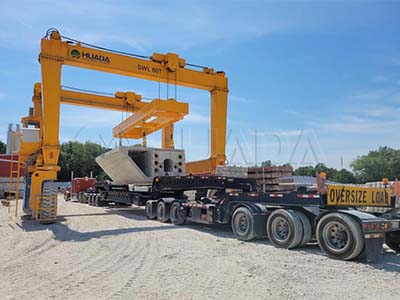

80T Straddle Crane for Precast Yard

Capacity:

80T (40t+40t) ton

Qty:

1set

Lifting Height：

6.5 m

Span :

9.5m

Application Site：

precasting yard

Structure ：

Double Girder

Spreader：

Customized Spreader

For Lifting :

bridge girder

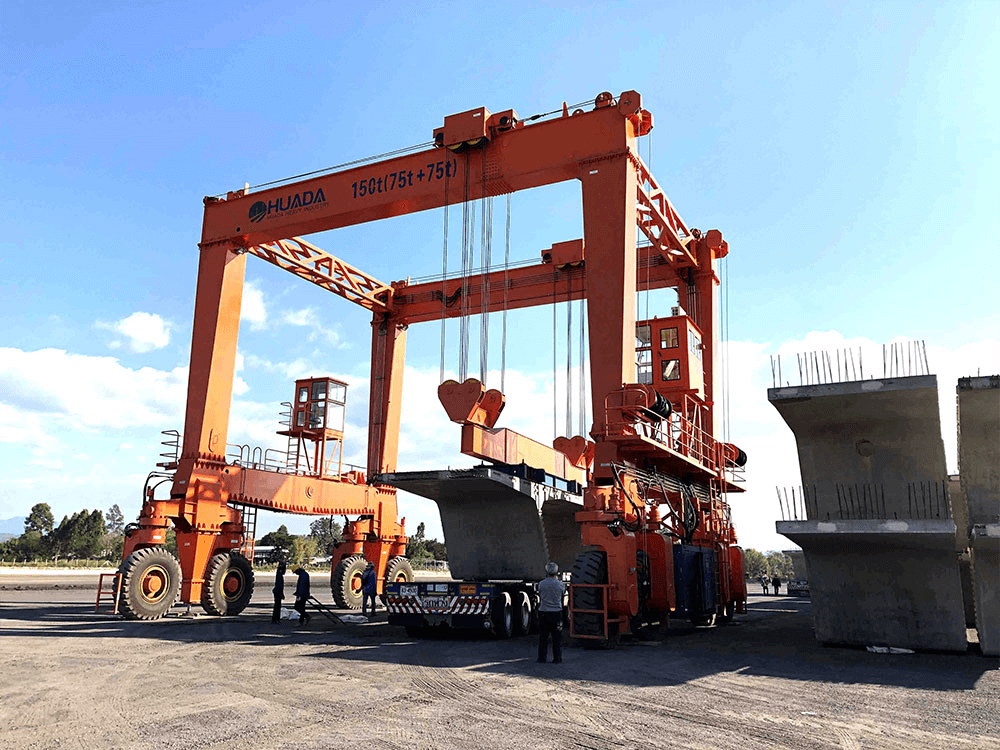

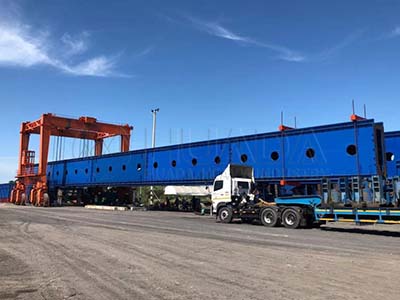

150T Straddle Carrier (RTG Crane) for Precast Yard

Capacity:

150T (75t+75t) Ton

Qty:

2 Sets

Lifting Height：

9.5 m

Span :

13.1 m

Application Site：

Precasting Yard

Structure ：

Double Girder

Spreader：

Customized Spreader

For Lifting :

Bridge Segment

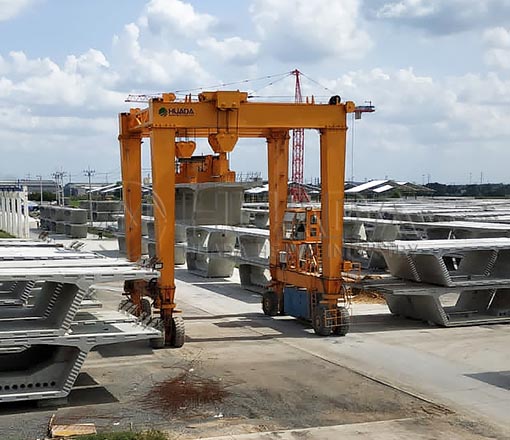

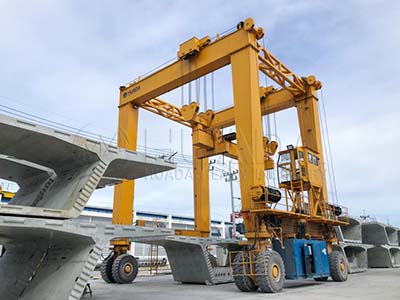

120T Rubber Tire Crane for Precasting Yard

Capacity:

120T (60t+60t) ton

Qty:

1 Set

Lifting Height：

9.5 m

Span :

10 m

Application Site：

Precasting Yard

Structure ：

Double Girder

Spreader：

Customized Spreader

For Lifting :

Bridge Segment

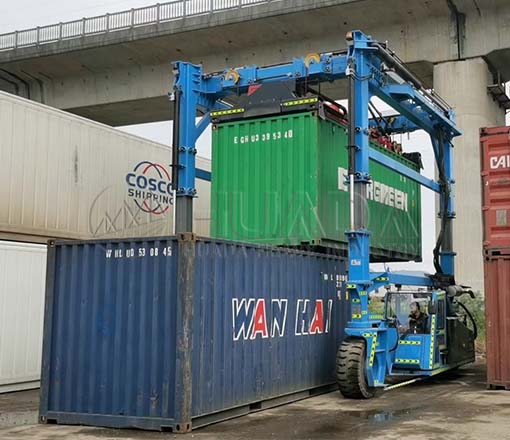

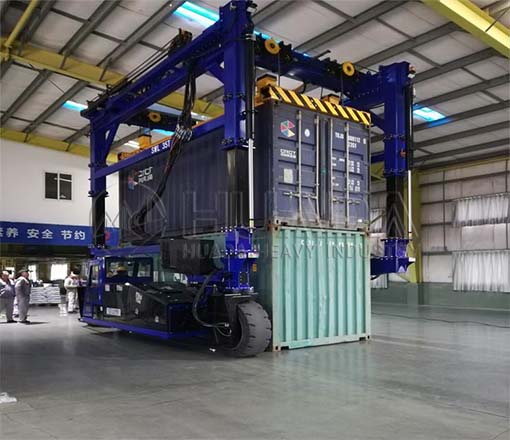

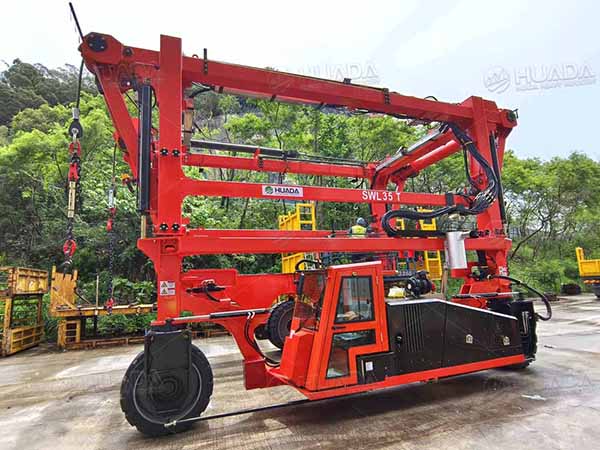

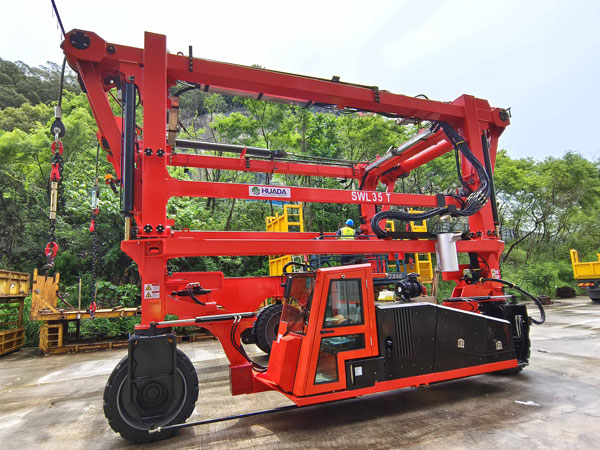

35T Container Straddle Carrier for Container Handling Industry

Max Load:

35T

Qty:

2 Sets

First Level Lifting Height：

1700 mm

Crane Size :

7.1m×5.1m×6.1m

Application Site：

Container Handling Industry

Structure ：

3 Wheels

Min Turning Radius：

7.5m

For Lifting :

Container

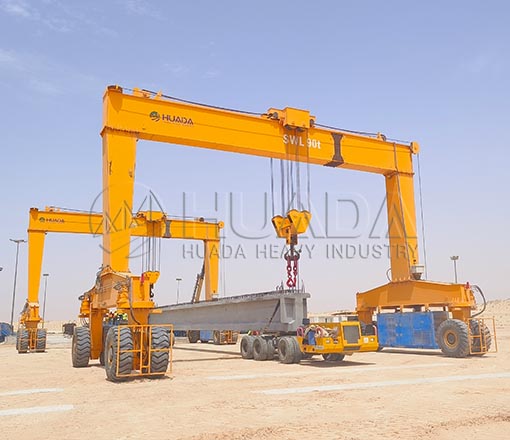

90T Straddle Carrier for Precast Yard

Capacity:

90T

Qty:

2 Sets

Lifting Height：

7.5 m （Under Hook）

Span :

15 m

Application Site：

Precast Yard

Structure ：

Single Girder

Spreader：

For Lifting :

I Beam

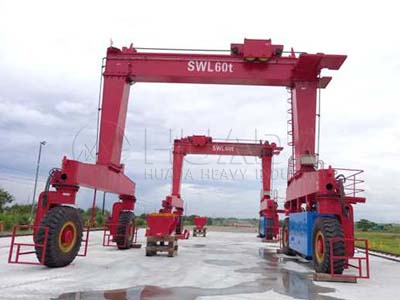

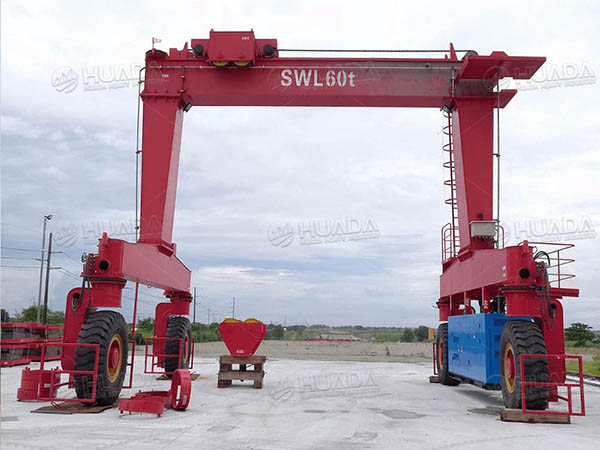

60T Straddle Machine for Casting Yard

Capacity:

60 Ton

Qty:

2 Sets

Lifting Height：

7 m

Span :

Application Site：

Casting Yard

Structure ：

Single Girder

Spreader：

For Lifting :

Lifting T girder

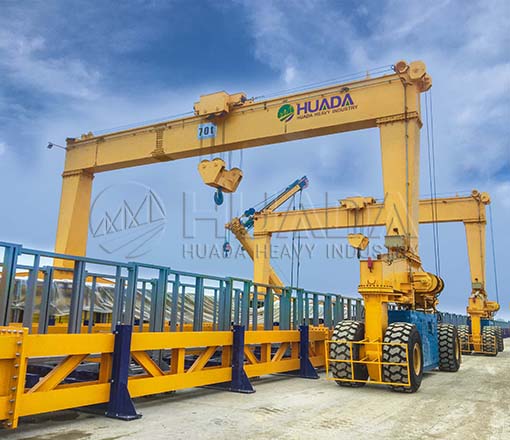

70T Straddle Lift Crane for Casting Yard

Capacity:

70 Ton

Qty:

2 Sets

Lifting Height：

7.5 m

Span :

14 m

Application Site：

Casting Yard

Structure ：

Single Girder

Spreader：

For Lifting :

Lifting T girder

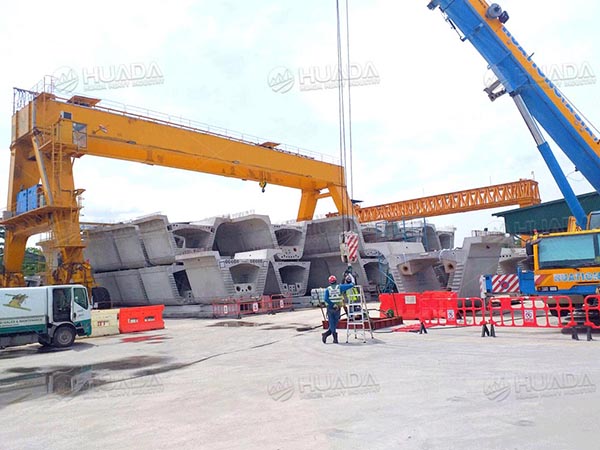

160Ton Rubber Tyred Gantry Crane for Casting Yard

Capacity:

160 Ton

Qty:

1 Set

Lifting Height：

13.5 m

Span :

34 m

Application Site：

Casting Yard

Structure ：

Double-A type

Spreader：

For Lifting :

Lifting U girder

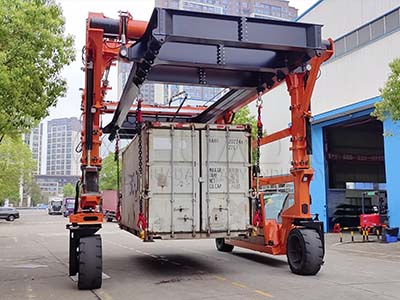

60T Container Straddle Carrier for Lifing Container

Max Load:

60T

Qty:

1Set

First Level Lifting Height:

1700mm

Crane Size:

8.5m×5.83m×6.2m

Appliaction Site:

Lifting Containers

Structure:

4 Wheels

Min Turning Radius:

10m

For Lifting:

Container

Why Choose Huada Heavy Industry？

Choose Huada Heavy Industry, Choose Reassure.

Huada Heavy Industry focus on Casting Yard and Bridge erection site one-stop product supply, which is from girder making, girder transportation, girder lifting to girder erection equipment etc. The products include concrete mould, Straddle Carrier, Gantry Crane, Girder Transporter, bridge erection equipment etc.

Customized Design

Full set documents & drawings support, customizing the most economical and optimal material handling solutions for you.

Strict Quality Control in Production

From steel raw material, welding, inspection to painting, our quality assurance department implements a strict quality assurance process.

Factory installation and debugging

We will do the installation and debugging before delivery to ensure the straddle carrier's performance & function. Also, this could minimize the site assembly work and facilitate the site assembly & test.

Full documents Support

We have professional team specialized to send you the products documents and shipping documents.

Free Remote online guidance or site guidance

There are two schemes for you to choose from:
a: Free Remote online guidance: We have already successfully supported the site assembly & commissioning of straddle carriers with free online remote guidance that save much time& cost for our customers.
b: If you need Huada engineers to go to the buyer’s project site to guide the crane installation and commissioning and training of the buyer’s workers, we can arrange and the cost be undertaken by customers.

Experienced After-sales Service in Time

Our after-sales engineer could provide freely remote online inspection and maintenance guidance timely through English.

Maintenance

We will send you the maintenance brochure. For core parts of the straddle carrier is imported from world famous brands, lower maintenance cost. For other parts, where is an issue, where you can find Huada Heavy Industry after-sales support or online chat.

Customer Testimonials

What Our Clients Are Saying?

Our straddle carrier crane products have been used at many customers site. Listen to what our customers say.

Welcome your inquiry

Contact our experts

Frequently Asked Questions

Huada Heavy Industry specializes in the design and manufacture of straddle carriers and we have a wealth of industry experience and expertise. We can customize the most economical and efficient material handling solutions to help you improve your productivity and safety, and help you to reduce the cost.

What Kind of Ground Does the Straddle Carrier Need to Work on?

First, the straddle carrier needs to work on compact and flat roads. It’s better to travel on concrete roads.
After our design for you, we will list ground pressure in our drawing. Then you can confirm this parameter with your geology engineer. Meanwhile, according to our completed projects experience, the compacted ground is no problem. But the ground must be flat. Here enclosed the photos to show two projects at abroad. They are both compacted and flat ground. And until now our straddle carrier travels well.

Will You Make the Installation and Debugging Before Delivery?

The straddle carrier will be done installation and debugging before delivery to ensure the straddle carrier's performance & function. Also, this could minimize the site assembly work and facilitate the site assembly & test.

How to Operate the Straddle Carrier? How Many Operators does it Need?

Generally, one set of straddle carrier needs one operator. He can control straddle carrier by remote control or drive in the cabin. It is very convenient.
And after production, we will provide the User Manual to guide the end user to operate our straddle carrier easily.

Can Huada Heavy Industry Engineer be on Site for Installation Guidance and Training？

There are two schemes for customers to choose from:
a: Free Remote online guidance: We have supported the site assembly & commissioning of straddle carriers with free online remote guidance that save much time& cost for our customers.
b: If it is necessary for Huada engineers to go to the buyer's project site to guide the installation and commissioning of the crane and train the buyer's workers, the buyer needs to be responsible for the related expenses of our engineers.

How Many Days Will it Take for Installation?

If site is well prepared, according to our experience, the installation and commissioning of one set Straddle Carrier need around 25 days.

What Certificate You Can Provide About Your Straddle Carrier ?

We already obtained CE certificate for our straddle carrier. And if you need another certificate, we can cooperate with your application.

What is the Difference Between Straddle Carrier and RTG?

Straddle carrier offer the flexibility to move in various directions. Rubber tyred gantry crane(RTG) is stationary gantry crane mounted on rubber tires. About the choice between straddle carrier and rubber tyred gantry crane depends on specific operational needs and space constraints.

How to Maintain the Straddle Carrier?

The daily maintenance of straddle carrier crane, including the transmission belt inspection and adjustment, engine oil, oil filter replacement, low pressure oil path exhaust training, wheel replacement, full floating internal expansion clutch inspection and adjustment, etc.

After delivery, we will send our installation, operation and maintenance manual of straddle carrier. Field users can perform maintenance according to the detailed information in the manual. If there is other question, our after-sales engineer could provide on-line guiding any time.
